The Physics of Why We Test with Water, Not Air
July 10, 2026
The Physics of Why We Test with Water, Not Air

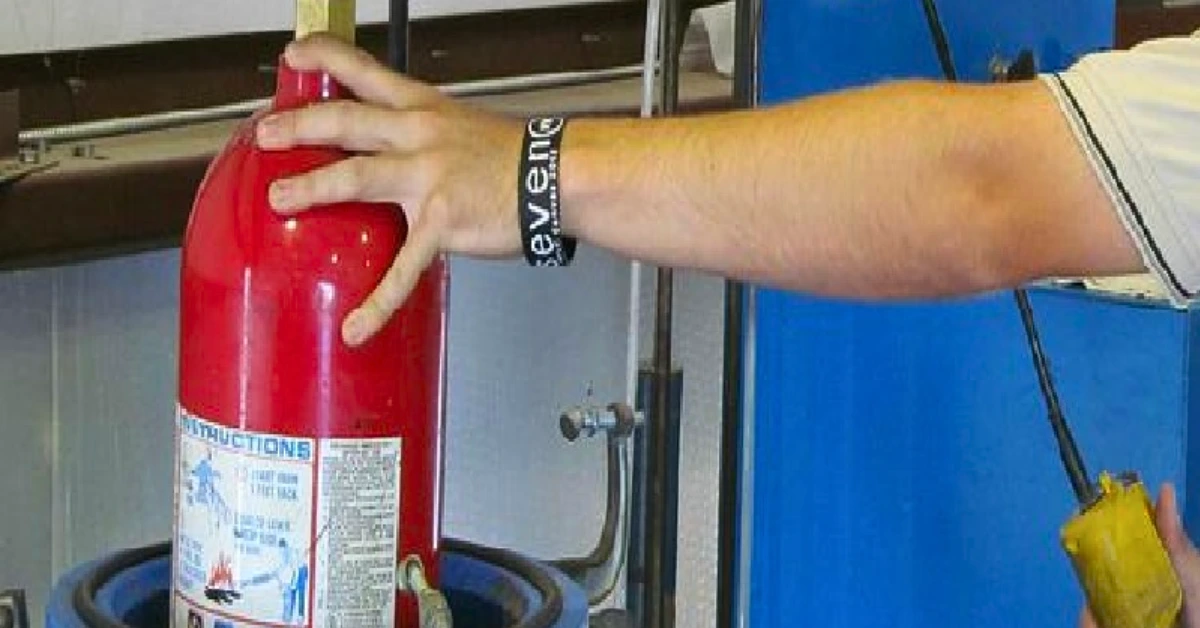

A technician shows up to hydrostatically test your fire extinguisher cylinders, and the process looks almost anticlimactic: the cylinder gets filled completely with water, sealed behind a barrier, and pressurized. No dramatic hissing, no visible tension. At first glance, it seems faster and easier to just pump the empty cylinder full of compressed air and watch the gauge. That instinct is exactly backward, and the reason is purely physics. Before you wonder why your technician insists on water for a test that's ultimately about pressure, here's the actual science behind why compressed air in that same cylinder would be a very different, and far more dangerous, proposition.
What to Do Right Now
- Never attempt to pressure-test a cylinder with compressed air or shop-grade nitrogen, even informally, even at low pressure. This isn't a shortcut technicians take for convenience, it's a specific safety requirement rooted in how gas and liquid store energy differently.
- If you see a cylinder that's dented, corroded, or shows signs of rough handling, treat it as a hydrostatic test candidate immediately, not a wait-until-next-cycle item. A compromised shell is exactly what the water test is designed to catch before it becomes a failure under pressure.
- Ask your service provider to confirm the test method being used if you're ever unsure. A legitimate hydrostatic test on a fire extinguisher cylinder is performed with water, full stop.
- Call a licensed fire protection specialist with proper hydrostatic testing equipment rather than assuming any technician with a pressure gauge is equipped to safely run this test.
Compressed Gas Isn't Just "More Air"
Most people assume that pressurizing a cylinder with air and pressurizing it with water are functionally the same test, just with different fluids. After all, the gauge reads the same PSI either way. In reality, the two methods store dramatically different amounts of energy at that same pressure reading. Water is nearly incompressible; forcing it into a sealed cylinder and raising the pressure takes relatively little additional volume change, so relatively little energy gets stored in the process. Compressed air behaves the opposite way; squeezing gas into a smaller effective volume at high pressure packs a large amount of potential energy into that gas, energy that has nowhere to go until something gives it an exit. The pressure number on the gauge looks identical either way. What's actually stored behind that number is not.
What Happens If the Cylinder Fails Is the Whole Point
It's easy to think of a hydrostatic test as primarily about confirming the cylinder holds pressure, with the choice of water or air being a minor detail of how that confirmation happens. In reality, the choice of test medium is what makes a controlled failure possible in the first place. If a water-filled cylinder fails under test pressure, the water, being nearly incompressible, simply escapes through the failure point as the pressure drops almost instantly; the volume of stored energy released is small, and the result is a leak, not an explosion. If that same cylinder were pressurized with compressed air instead and failed at the same pressure reading, the gas would expand rapidly to fill the space the water would have occupied, releasing its stored energy all at once. That's the difference between a technician safely observing a pressure drop on a gauge behind a protective barrier, and a cylinder becoming a projectile.
The Water Jacket Method Turns Physics Into a Measurement
Property owners sometimes assume the water in a hydrostatic test is purely a safety measure without realizing it's also how the actual measurement gets taken. In reality, the standard method for small pressure vessels like fire extinguisher cylinders is the water jacket test: the water-filled cylinder is placed inside a sealed, water-filled chamber connected to a calibrated glass tube. As internal pressure rises, the cylinder itself expands slightly, displacing a precise, measurable amount of water out of the chamber and into the tube. When the pressure is released, a cylinder in good condition contracts back to very close to its original size, and the water returns with it. A cylinder that doesn't return to close to its original volume, one that's stretched permanently under pressure, has metal that's no longer resilient enough to be trusted, and it fails the test. Air can't provide this kind of precise, reversible measurement the same way; water's incompressibility is what makes the expansion measurable down to a fraction of a milliliter.
LIABILITY WARNING: DOT hazardous materials regulations and NFPA 10 both mandate hydrostatic, not pneumatic, testing for portable fire extinguisher cylinders specifically because of the explosive energy compressed gas stores at test pressure. A cylinder tested or represented as tested using compressed air rather than water has not been legitimately tested under the applicable standard, and a facility relying on such a test bears direct liability exposure if that cylinder later fails in service.
Trusting the Physics, Not Just the Paperwork
Understanding why the test works the way it does isn't just trivia, it's part of why the process can't be rushed, improvised, or substituted with a shortcut that looks similar on a gauge. When you hire Hedrick Fire Protection for hydrostatic testing, our technicians run every cylinder through the proper water-jacket procedure, behind the appropriate protective barrier, at the correct multiple of service pressure for that specific cylinder type, because the physics behind the test is exactly why it has to be done this way, every time.
Want to see how a hydrostatic test actually verifies your fire extinguisher cylinders are safe to keep in service? Don't take a shortcut on the one test designed to catch a cylinder before it fails. Click here to contact the Fire Extinguisher Service Team at Hedrick Fire Protection to schedule certified hydrostatic testing today.
