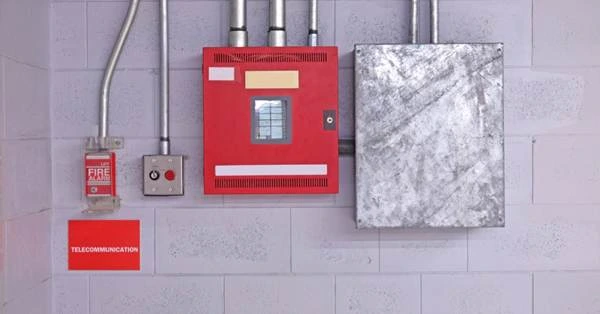

A fire alarm can detect a problem quickly, but occupants still need a clear signal telling them when to respond. A notification appliance circuit, commonly called a NAC, carries power and signals from fire alarm equipment to notification devices throughout a building. These circuits support the audible and visible alerts occupants receive during an alarm event. Their design must account for both the devices connected to the circuit and the electrical demands those devices create.
Notification Devices Connected to NACs
NACs can serve several types of notification appliances depending on the building and system configuration. Audible devices, visible devices, and combination units may all be connected to a notification appliance circuit. Each device has its own operating requirements that must be considered when planning the circuit.
Horns, bells, and speakers provide audible notification, while strobes provide a visual warning. Horn-strobes combine both functions in one device. The type and placement of these appliances depend on the building'sneeds and the fire alarm system.
How NACs Receive Power and Signals
When a fire alarm system detects an alarm condition, the control equipment activates the appropriate notification appliance circuit. Power then travels through the circuit to the connected devices, allowing them to sound, flash, or perform another programmed function.
When creating a fire alarm notification appliance circuit, designers consider the number of appliances, circuit length, wiring configuration, and available power. These factors affect how much electrical demand the circuit must support and how reliably power reaches each connecteddevice.
Wiring and Circuit Supervision

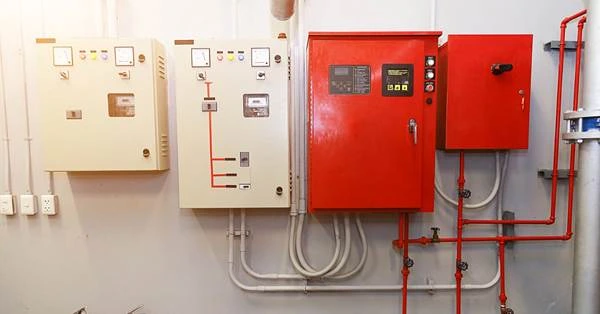

%20(1).webp)
Wiring connects the fire alarm control equipment to the notification appliances on a NAC. The circuit is also supervised so the system can detect certain problems, such as breaks or interruptions in the wiring. These alerts give technicians a starting point when troubleshooting the circuit.
Supervision components are selected based on the circuit layout and equipment requirements. During testing or service, technicians can use fault indications to narrow down where a problem may be occurring. This makes it easier to identify issues that could affect connected notification devices.
Circuit Layout
Circuit layout determines how wiring is routed through the building and how notification devices are connected along each run. During fire alarm system installation, technicians follow the planned circuit layout to connect wiring, notification devices, and supporting equipment throughout the building. A clear layout also makes futuretesting and service easier to manage.
Factors that can affect how the wiring is arranged include:
- building layout
- notification device locations
- wiring un length
- circuit configuration
- total circuit load
- voltage drop
- available power capacity
Calculating NAC Power Requirements
Every notification appliance connected to an NAC uses electrical power while operating. If the combined demand is too high, the circuit or power supply may not have enough capacity to support all connected devices. Designers therefore calculate the anticipated load before finalizing circuit assignments.
The calculation is based on the electrical characteristics of the specific appliances selected for the system. Manufacturer documentation provides the values needed to determine their expected demand. Once the total is calculated, it can be compared with the equipment's rated capacity supplying the circuit.
Determining Total Circuit Load
Calculating circuit load starts with identifying the current demand of each appliance connected to the NAC. Those values are added together to determine the circuit's total expected demand during operation. Designers then compare that figure with the capacity of the control panel or power. If the total is too high, devices may need to be divided among additional circuits or supported by additional power equipment.
Accounting for Voltage Drop
%20(1).webp)
Voltage can decrease as electrical current travels throughwiring, particularly over longer distances or on circuits with higherelectrical demand. If too much voltage is lost along the way, devices farther down the circuit may not receive the operating voltage they require. Calculating voltage drop allows designers to identify and address that issue before the system is installed.
These factors can affect voltage drop:
- Total wiring length: Longer wiring runs can increase the amount of voltage lost along the circuit.
- Wire size: Thinner wire generally has more electrical resistance and can lead to greater voltage drop, while thicker wire can reduce voltage loss over the same distance.
- Number of connected appliances: More devices can increase the circuit’s overall electrical demand.
- Current drawn by the devices: Appliances that draw more current can contribute to greater voltage drop.
- Appliance locations: Devices farther along the circuit may receive less voltage than those closer to the power source.
- Available voltage at the power source: The starting voltage affects how much voltage remains available throughout the circuit.
NAC Circuit Capacity and Limitations
A notification appliance circuit can only support devices within the electrical limits of the equipment serving it. Those limits have to be evaluated alongside voltage drop and individual appliance requirements. Looking at all three together gives designers a clearer picture of how the circuit should be arranged.
Adding more devices to a single circuit isn't always the best option, even if there appears to be room for them on the plans. A longwiring path or higher device demand may make multiple circuits moreappropriate. Dividing the load can also create a clearer system layout for future testing, service, or modifications.
Planning for System Expansion
Future renovations or building changes may require additional notification appliances. If the existing system has little remaining circuit or power capacity, new equipment may be needed before those devices can be added. Reviewing available capacity in advance can make future modifications easier to plan. Any expansion should still be evaluated against the equipment ratings and requirements that apply to the completed system.
Notification appliance circuits connect fire alarm control equipment with the devices that alert people throughout a building. Their design depends on how the system distributes power, how much electrical demand the appliances create, and how wiring conditions affect performance. Technicians must verify that any changes to a NAC remain within the system’selectrical and equipment limits. That can mean checking device loads and wiring conditions before adding or relocating notification appliances.
